CONE CRUSHERS

Cone crushers, which are designed for crushing hard and abrasive materials such as Basalt gabbro, Granite and river gravel, have an important role in reducing operating costs, especially thanks to their low wear rates. In addition, MADEN cone crushers, which provide problem-free operation even in the hardest stones with their strong mechanical designs, are a serious alternative to very high-priced cone crushers.

  • Rigid and reliable design
  • Hydraulic setting system
  • Different type of mantle-concave sets for different applications
  • Lubrication system with automation, heating and cooling system for main shaft, pinion shaft and gear lubrication
  • Dust protection for mechanical parts of crusher
  • Special protection system for tramp iron

TECHNICAL SPECIFICATIONS

MODEL MAXIMUM FEED SIZE (mm) MOTOR POWER (kW) WEIGHT (kg)
SK-300 240-360 132 12.200
HK-300 60-170 132 9.300
SK-400 300-450 200 19.000
HK-400 80-200 200 14.600
HK-600 325 315 34.000

DIMENSIONS

MODEL A B C D E F G H I
SK-300 1380 4590 5000 3900 2400 1580 2000 4340 1750
HK-300 1380 4590 5000 3900 2400 1580 2000 4340 1750
SK-400 2000 5090 5180 4190 2675 1580 2500 4540 2050
HK-400 2000 5090 5180 4190 2675 1580 2500 4540 2050
HK-600 1970 6500 6540 4850 3485 1245 3150 6000 2700

360° View

your 360 images

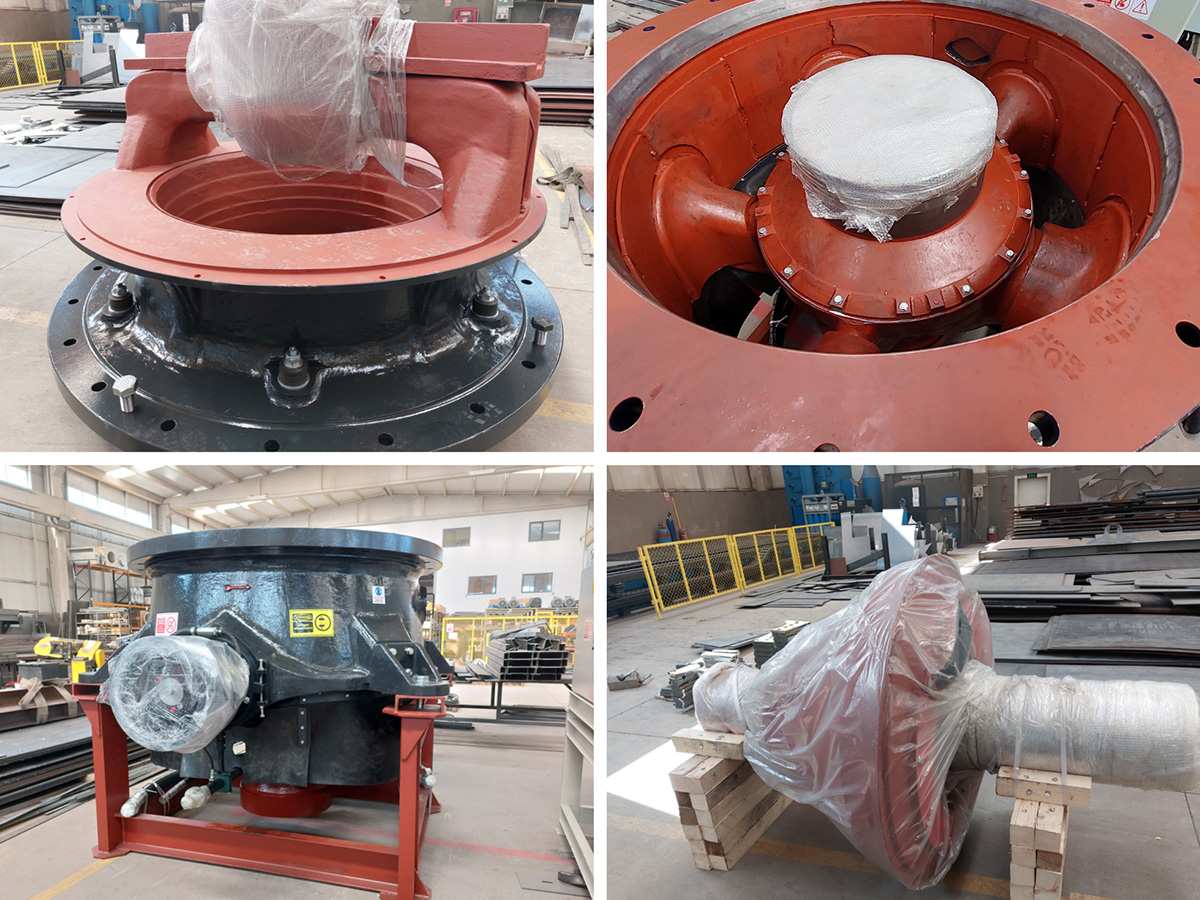

PRODUCT GALLERY
