PRIMARY IMPACT CRUSHERS

PRIMARY IMPACT CRUSHERS

Primary impact crushers are machines designed for primary crushing of soft to medium hard stones. The machines work very efficiently thanks to their high capacity and high reduction ratio. However, such crushers are not suitable for hard materials. Therefore, before deciding on the use of a primary impact crusher, the mechanical properties of the crushed material should be very well assessed.

  • Compact and rigid body design
  • Hydraulic body opening system for ease of maintenence
  • Hydraulic setting adjustment
  • Easy hammer replacement. Casting hammers with wear and breaking resistance
  • High reduction ratio
  • Heavy duty steel casted bearing housings
  • Heavy duty bearings
  • Wide feed opening with chain curtain

TECHNICAL SPECIFICATIONS

MODEL ROTOR DIMENSIONS (mm) MAXIMUM FEED SIZE (mm) CAPACITY (TON/HOUR) MOTOR POWER (kW) WEIGHT (kg)
PDK-130 1200×1300 650 200-400 185-250 17.000
PDK-140 1430×1400 800 275-450 200-315 21.200
PDK-160 1430×1600 900 350-600 250-400 26.100
PDK-200 1650×2000 1000 500-1000 400-630 38.700

DIMENSIONS

MODEL A B C D E F G H I J K L M
PDK-130 1250 1340 1380 1980 2260 2740 3160 1380 2755 1930 2700 3250 1230
PDK-140 1250 1440 1480 2080 2260 2740 3160 1380 2855 1930 2700 3250 1230
PDK-160 1250 1640 1680 2280 2260 2740 3160 1380 3255 1930 2700 3250 1230
PDK-200 1250 2040 2080 2680 2260 2740 3160 1380 3555 1930 2700 3250 1230

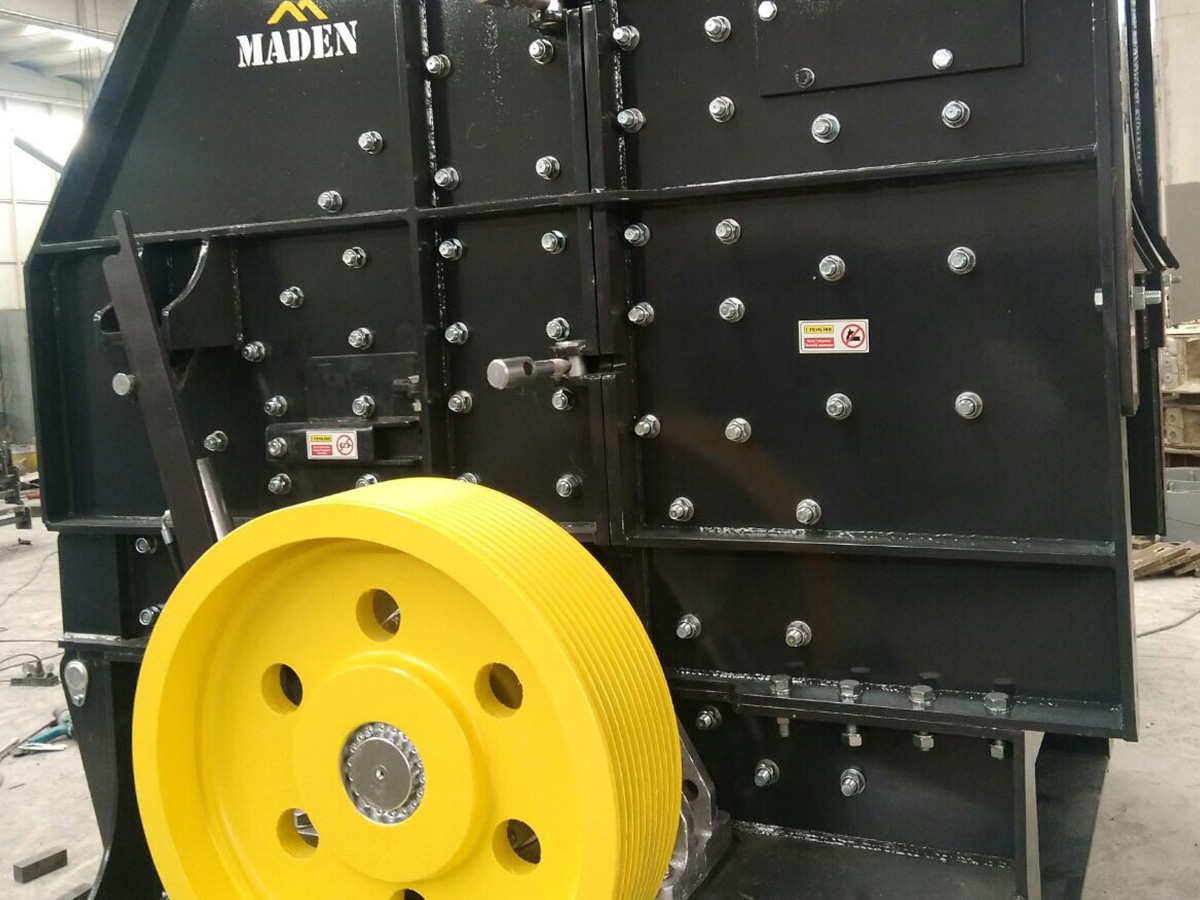

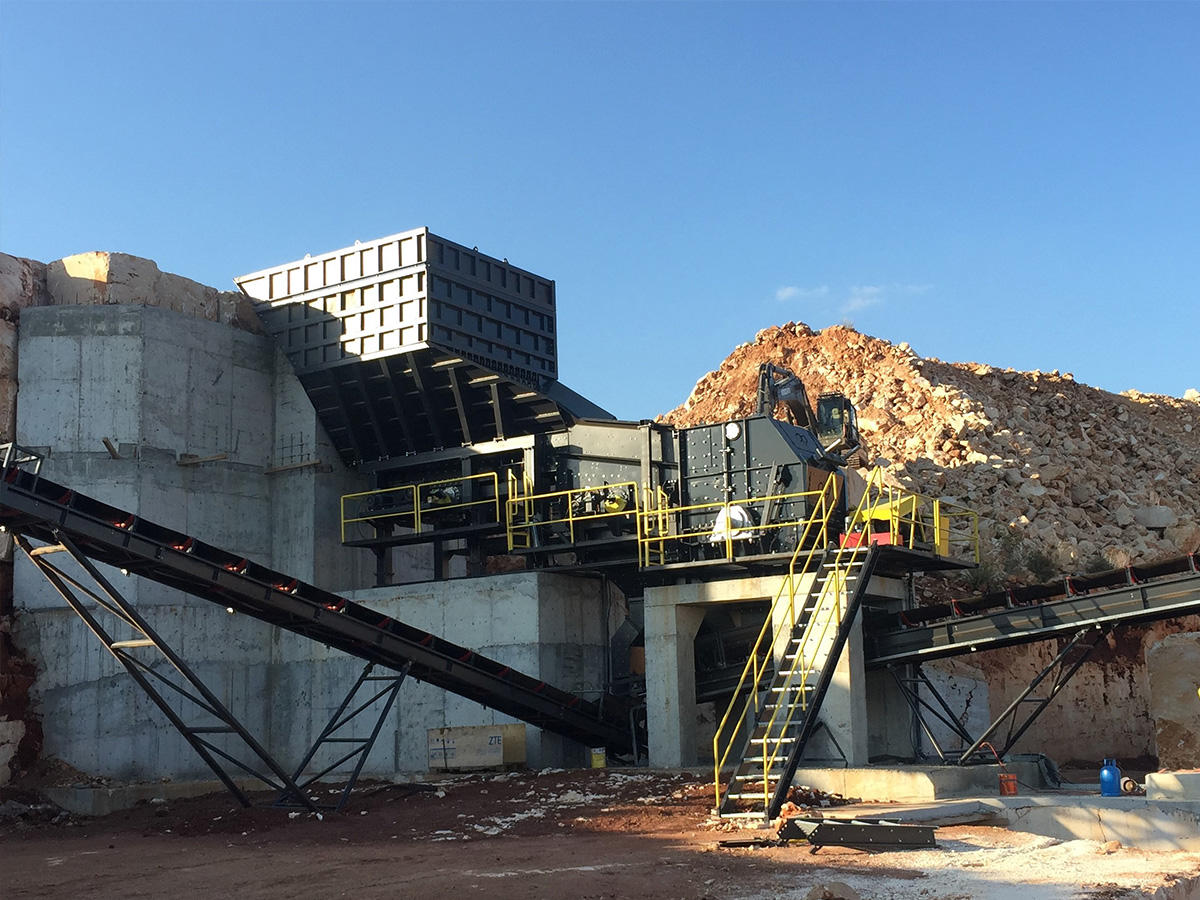

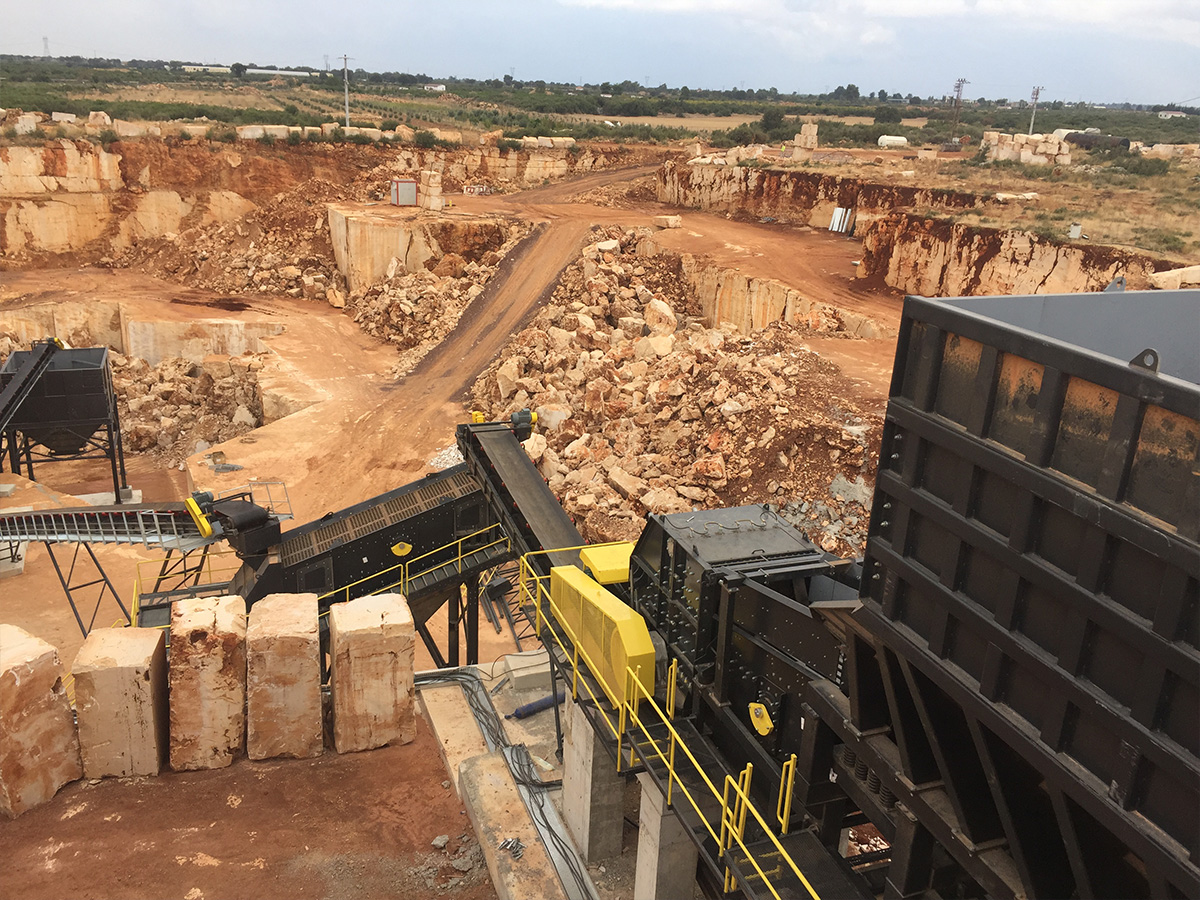

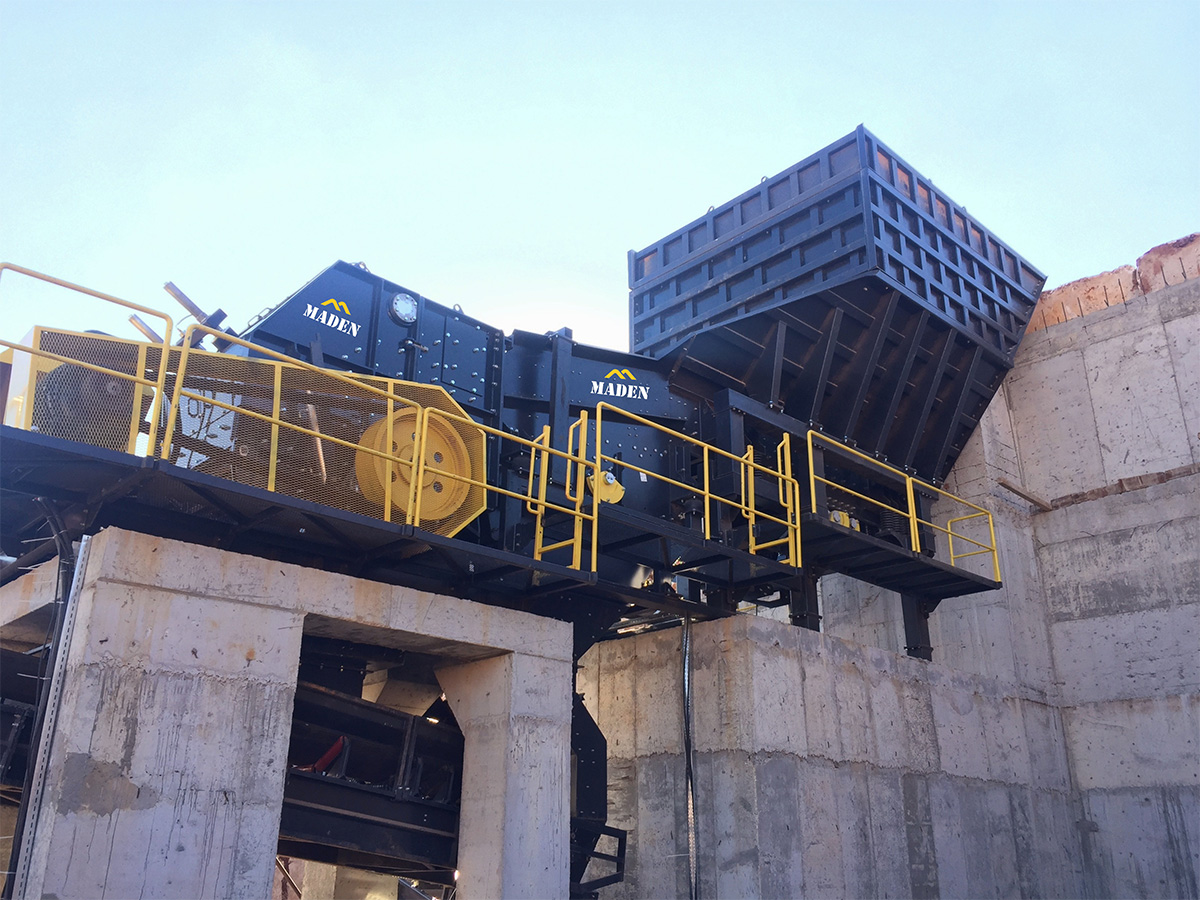

PRODUCT GALLERY
