TERTIARY IMPACT CRUSHERS

TERTIARY IMPACT CRUSHERS

Tertiary crushers are used for soft and mid-hard material. Tertiary crushers have more fine output than secondary impact crushers and they can be used in final crushing stage. Also tertiary crushers produce good shaped materials suitable for usage as product.

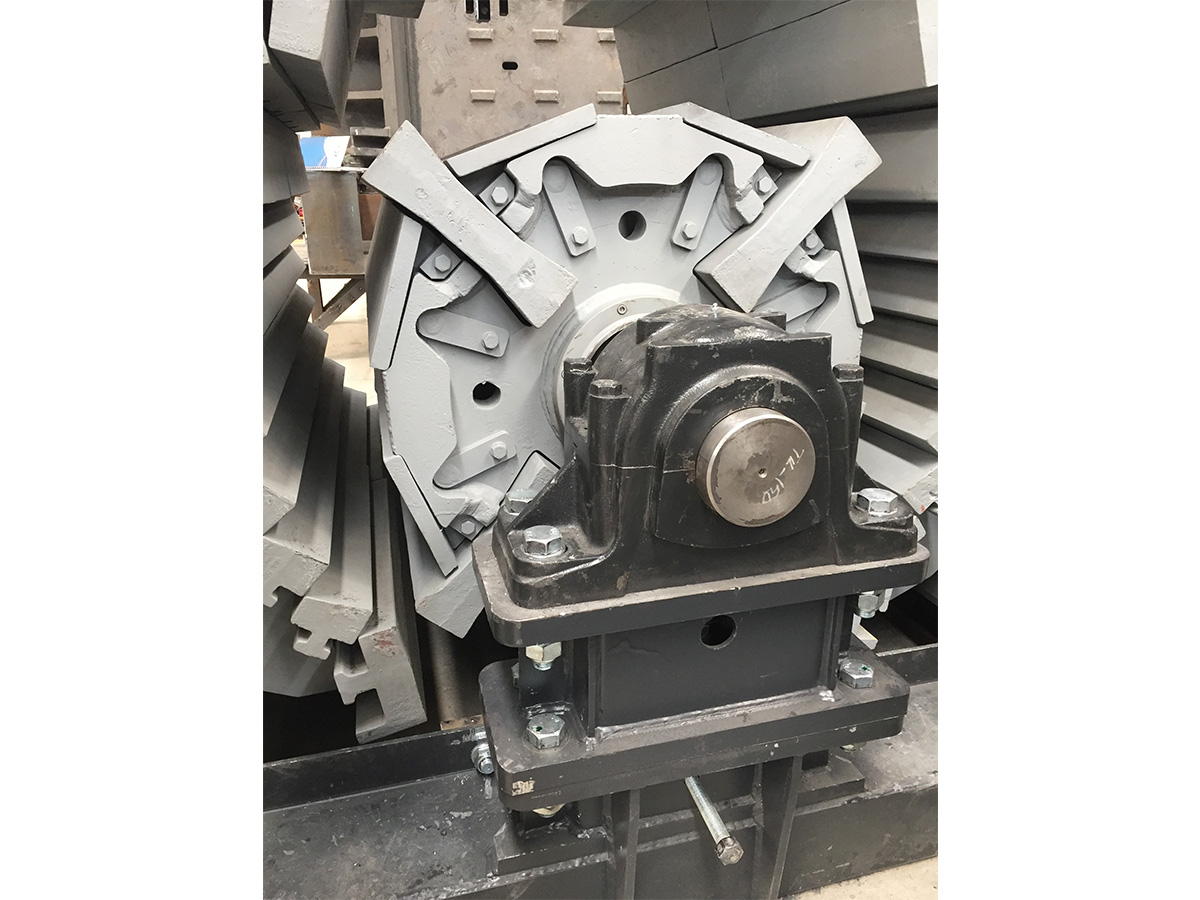

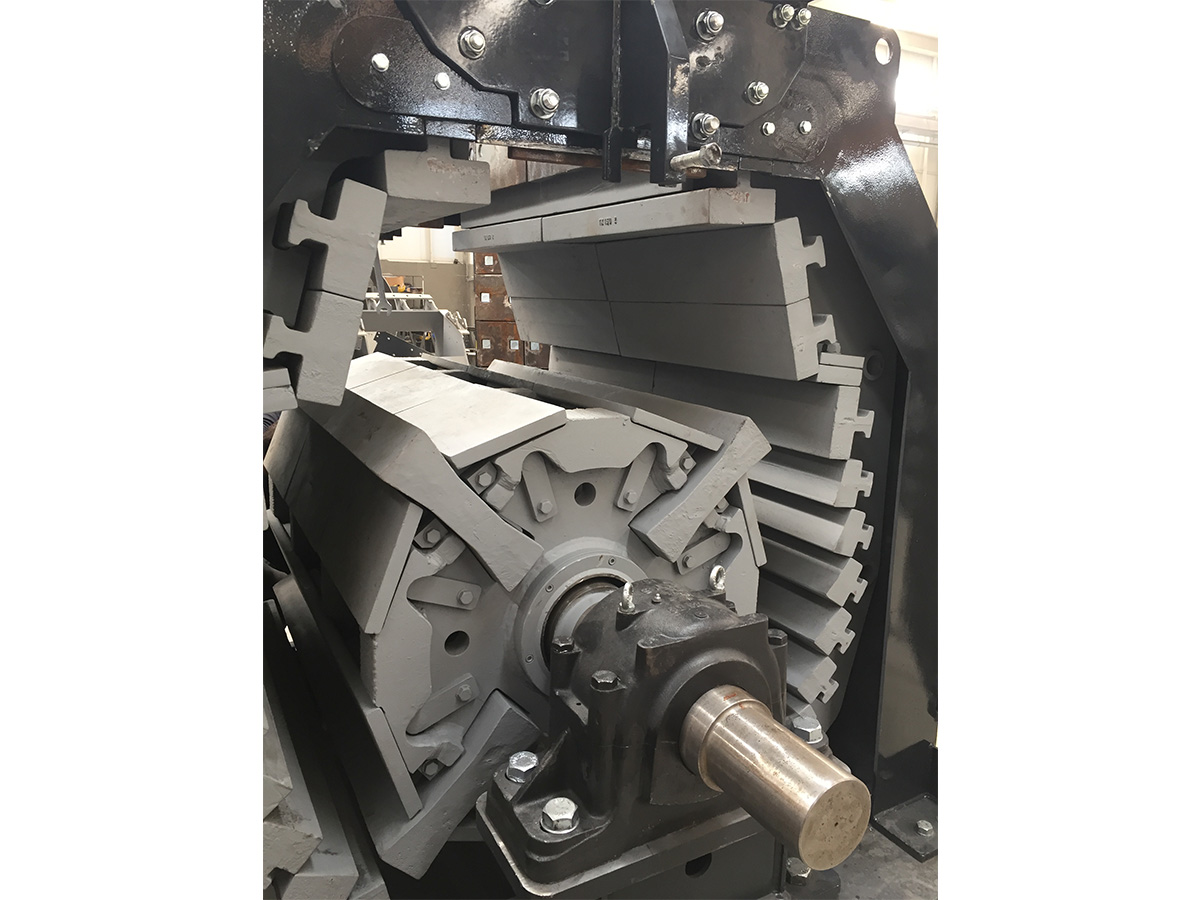

  • Rotor with high inertia

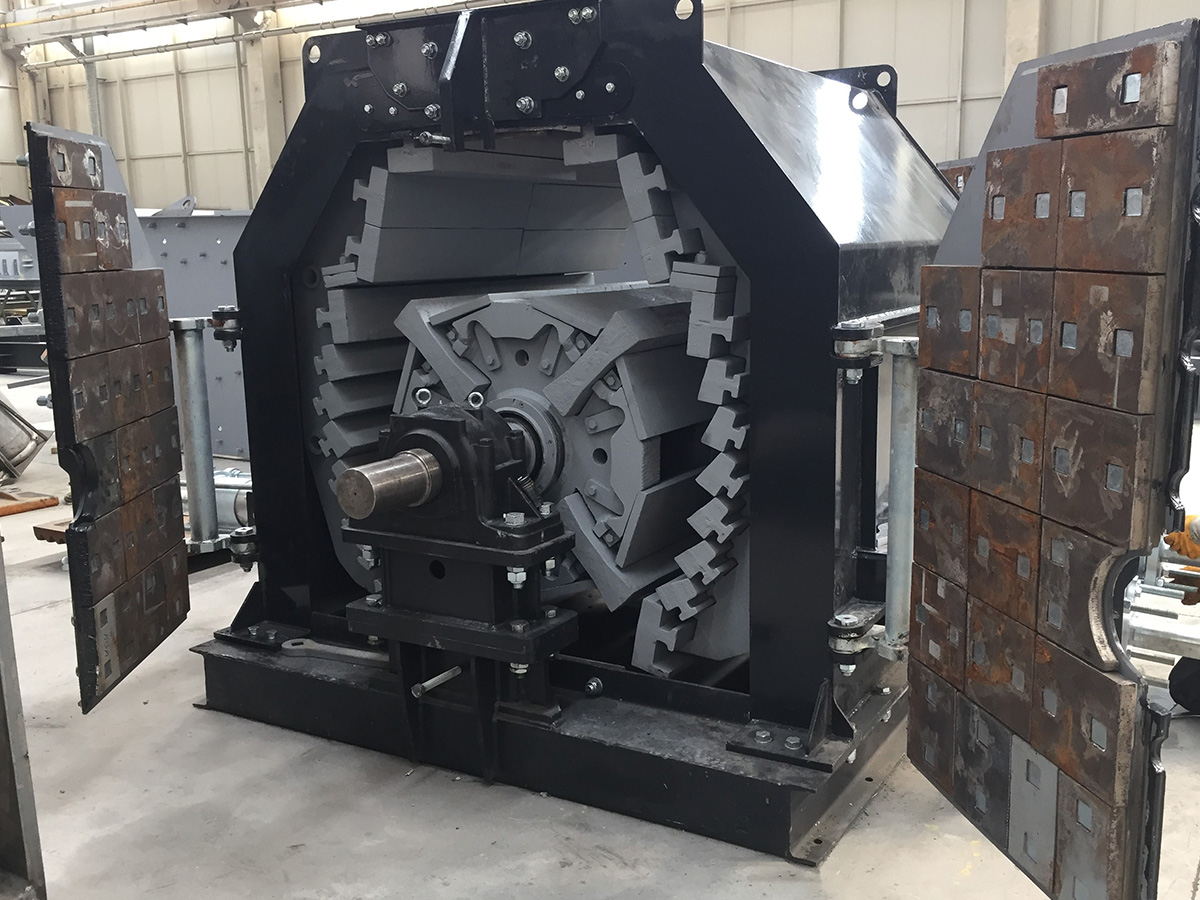

  • Reversible rotor design and impact curtains on both sides
  • Easy hammer replacement
  • Casting hammers with wear and breaking resistance
  • Heavy duty steel casted bearing housings
  • Heavy duty bearings

TECHNICAL SPECIFICATIONS

MODEL ROTOR DIMENSIONS (mm) MAXIMUM FEED SIZE (mm) CAPACITY (TON/HOUR) MOTOR POWER (kW) WEIGHT (kg)
TK-80 1200X800 100 75-150 132-185 11.300
TK-100 1200X1000 120 120-250 160-200 14.000
TK-120 1200X1200 120 150-300 185-250 17.100
TK-150 1200X1500 150 200-400 200-315 20.800

DIMENSIONS

MODEL A B C D E F G H I J K L M N O P
TK-80 2200 1430 2620 3905 1970 910 600 4660 2125 1355 3055 935 450 1335 3205 3040
TK-100 2200 1630 2620 3905 2170 1110 600 4860 2125 1555 3255 935 450 1335 3405 3040
TK-120 2200 1830 2620 3905 2370 1310 600 4860 2125 1755 3455 935 450 1335 3605 3040
TK-150 2200 2130 2620 3905 2670 1610 600 4860 2125 2055 3755 935 450 1335 3905 3040
