VIBRATING SCREENS

VIBRATING SCREENS

TEU SERIES SCREENS

The TEU series vibrating screens have elliptical motion with drive machanisms located on top of the screen body. With this elliptical motion, the material move faster on the feeding region of the screen and the material spread on the screen decks immediately which provides the fine material falls down on the lower decks in the beginning of the screen. When material comes to the discharge end of the screen, gets slow and wait more time on the screen deck. With this motion characteristic, the screening efficiency of the screen gets higher.

  • Body and drive system design completely bolt jointed without welding
  • Movable front chute for ease of maintenance
  • Easy screening media replacement by the help of wide deck space
  • Stepped screening area helps the efficiency
  • Stone-box type distributor chute with low wear
  • Special chute design providing to merge or feed back the decks with desired ratio
  • Reduced bearing size
  • Ease of maintenance and bearing replacement

TEO SERIES SCREENS

The TEO series vibrating screens with are the most common screening machines used in crushing and screening plants. These screens have a wide usage for common screening purposes with circular motion. They provide a high screening capacity with a wide range of application. MADEN TEO series screens, thanks to the specially designed ETS drive system,  combine the high screening efficiency with reliable operation and ease of maintenance.

  • Body and drive system design completely bolt jointed without welding
  • Movable front chute for ease of maintenance
  • Easy screening media replacement by the help of wide deck space
  • Stone-box type distributor chute with low wear
  • Special chute design providing to merge or feed back the decks with desired ratio

HORIZONTAL SCREEN

The horizontal screens are used for accurate screening. Since the material speed on the screen deck is low, the material stays on the screen for longer time which provides a fine screening.

  • More efficient and accurate screening by the help of linear motion
  • Body and drive system design completely bolt jointed without welding
  • Movable front chute for ease of maintenance
  • Easy screening media replacement by the help of wide deck space
  • Stone-box type distributor chute with low wear
  • Special chute design providing to merge or feed back the decks with desired ratio

TECHNICAL SPECIFICATIONS

MODEL DIMENSIONS (mm) SCREENING AREA (m²) NUMBER OF FLOOR MOTOR POWER (kW)
TEU-1850 1800X5000 9 2-3 22
TEU-2050 2000X5000 10 2-3- 4 30
TEU-2060 2000X6000 12 2-3- 4 30

DIMENSIONS

MODEL A B C D E F G H I J K
TEU-1850 / 2-3 5000 1800 6440/6840 6820/7220 9100 3900 3100 2230 1385 2285 7800
TEU-2050 / 2-3-4 5000 2000 6440/6840/7300 6820/7220/7650 9100 4100 3100 2430 1585 2285 7800
TEU-2060 / 2-3-4 6000 2000 7165/7565/8085 7350/7750/8200 10000 4100 4140 2430 1565 2720 7800

TECHNICAL SPECIFICATIONS

MODEL DIMENSIONS (mm) SCREENING AREA (m²) NUMBER OF FLOOR MOTOR POWER (kW)
TEO-1030 1000X3000 3 2-3 7,5
TEO-1235 1200X3500 4,2 2-3 11
TEO-1440 1400X4000 5,6 2-3 15
TEO-1650 1600X5000 8 2-3 22
TEO-1855 1800X5500 10 2-3 22
TEO-2060 2000X6000 12 2-3- 4 30
TEO-2265 2200X6500 14,3 2-3- 4 30
TEO-2470 2400X7000 16,8 2-3- 4 37

DIMENSIONS

MODEL A B C D E F G H I J
TEO-1030 / 2-3 1000 3000 5400 / 5800 6195 3000 2570 1375 5215 1300 2065
TEO-1235 / 2-3 1200 3500 5600 / 6000 6195 3200 2570 1575 5215 1300 2065
TEO-1440 / 2-3 1400 4000 5900 / 6500 6970 3415 2840 1800 5500 1300 2030
TEO-1650 / 2-3 1600 5000 6800 / 7200 8200 3865 3655 2000 6000 1500 1950
TEO-1855 / 2-3 1800 5500 7200 / 7600 8200 4065 3655 2200 6000 1500 2150
TEO-2060 / 2-3-4 2000 6000 7530 / 7910 / 8480 10500 4290 4140 2430 8270 1535 2675
TEO-2265 / 2-3-4 2200 6500 7530 / 7910 / 8480 11000 4500 4140 2630 7850 1550 2730
TEO-2470 / 2-3-4 2400 7000 7100/7580 / 8000 11240 4700 5000 2830 8330 1600 2520

TECHNICAL SPECIFICATIONS

MODEL DIMENSIONS (mm) NUMBER OF FLOOR MOTOR POWER (kW)
YE-2050 2000X5000 3 30
YE-2260 2200X6000 3 37

360° View

TEO SERIES SCREENS

your 360 images

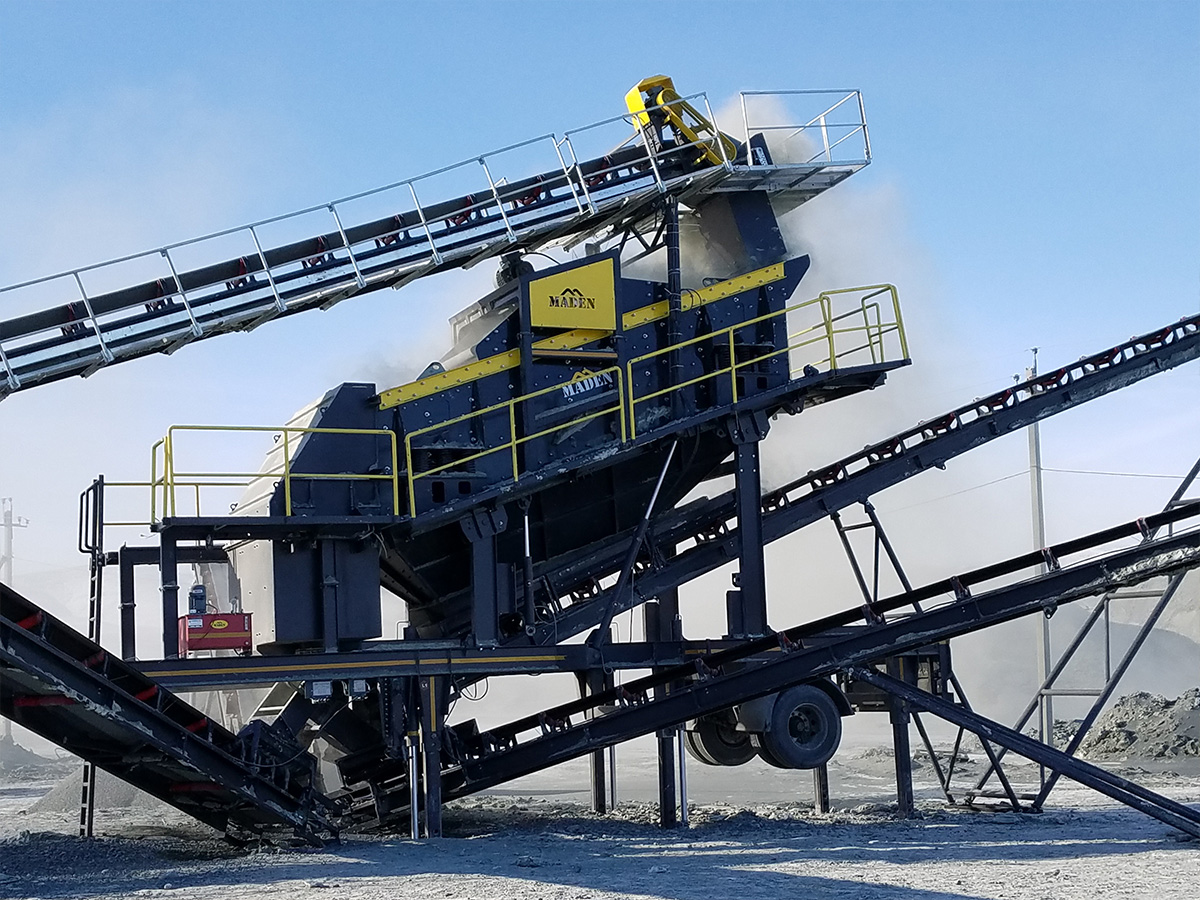

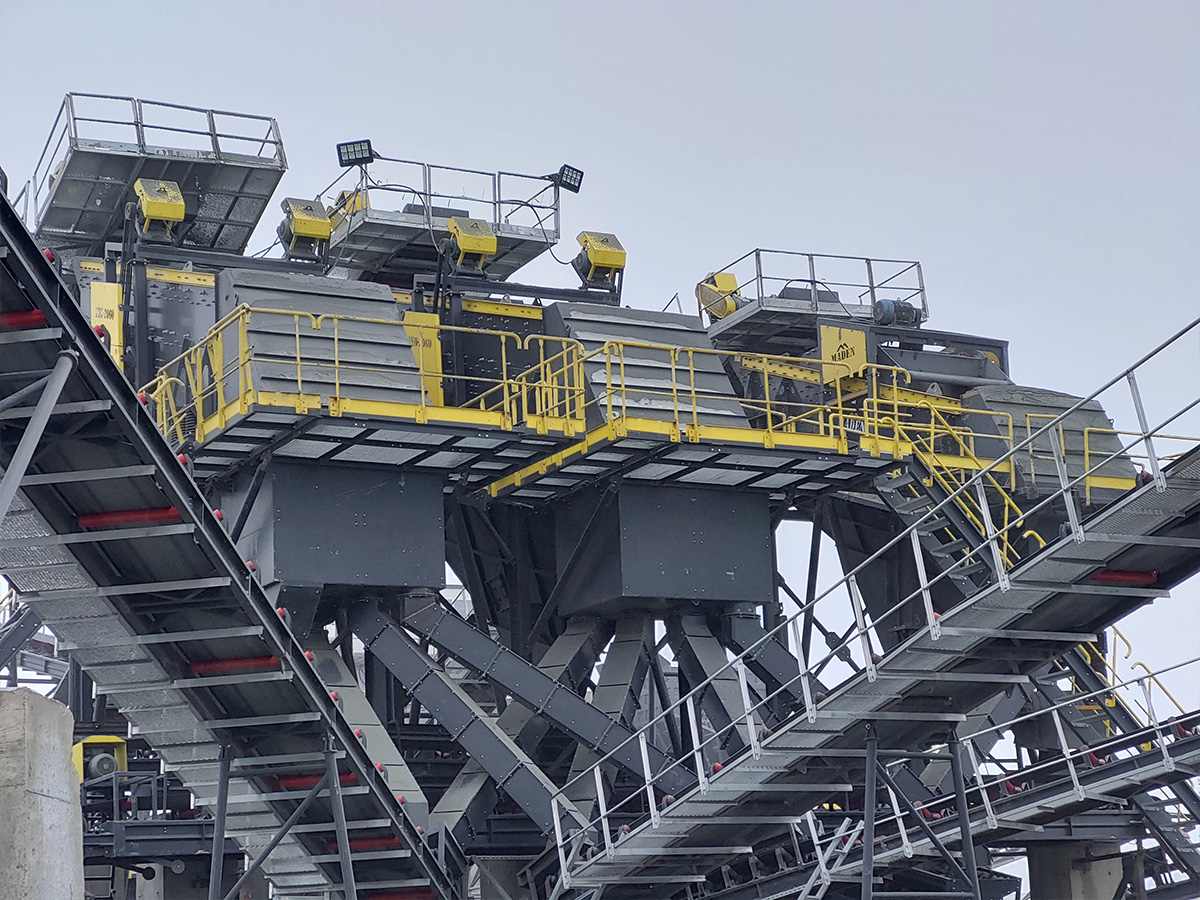

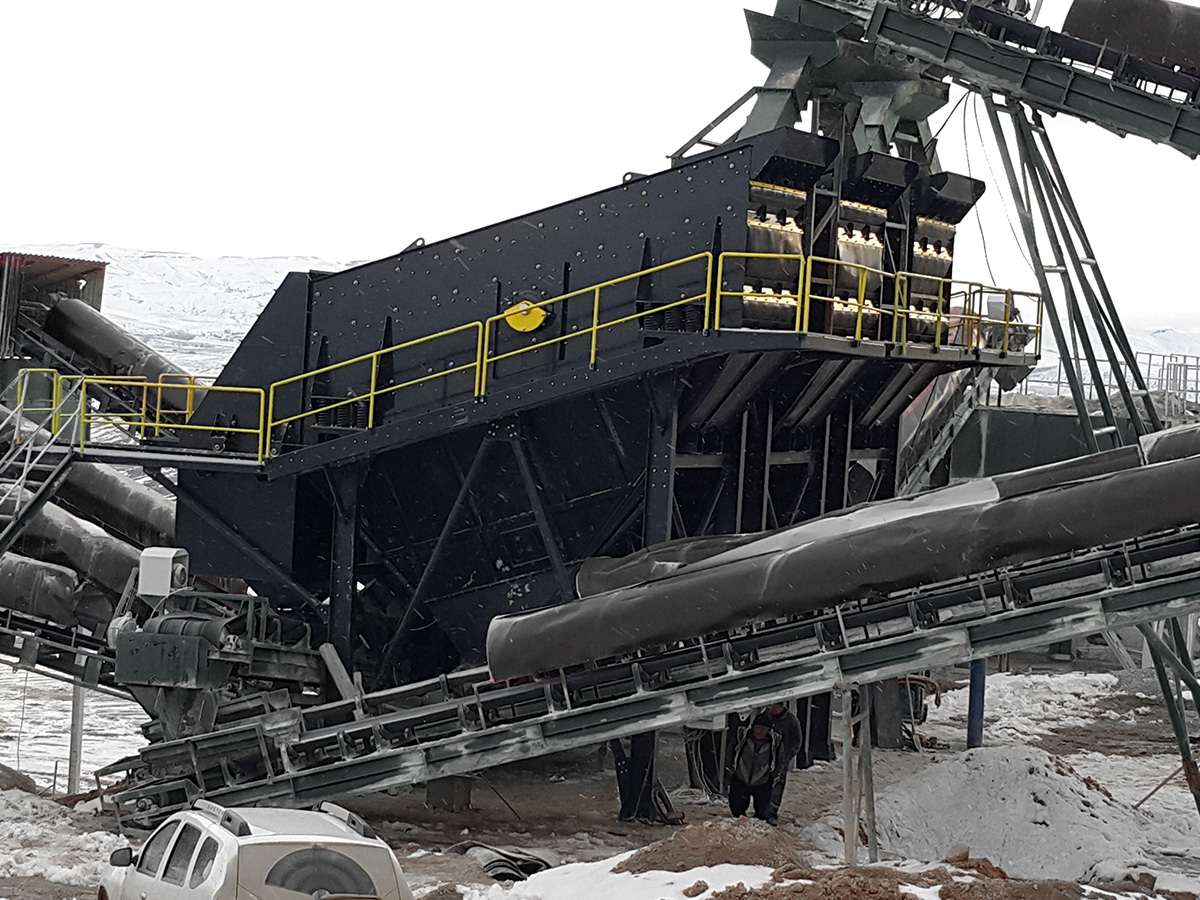

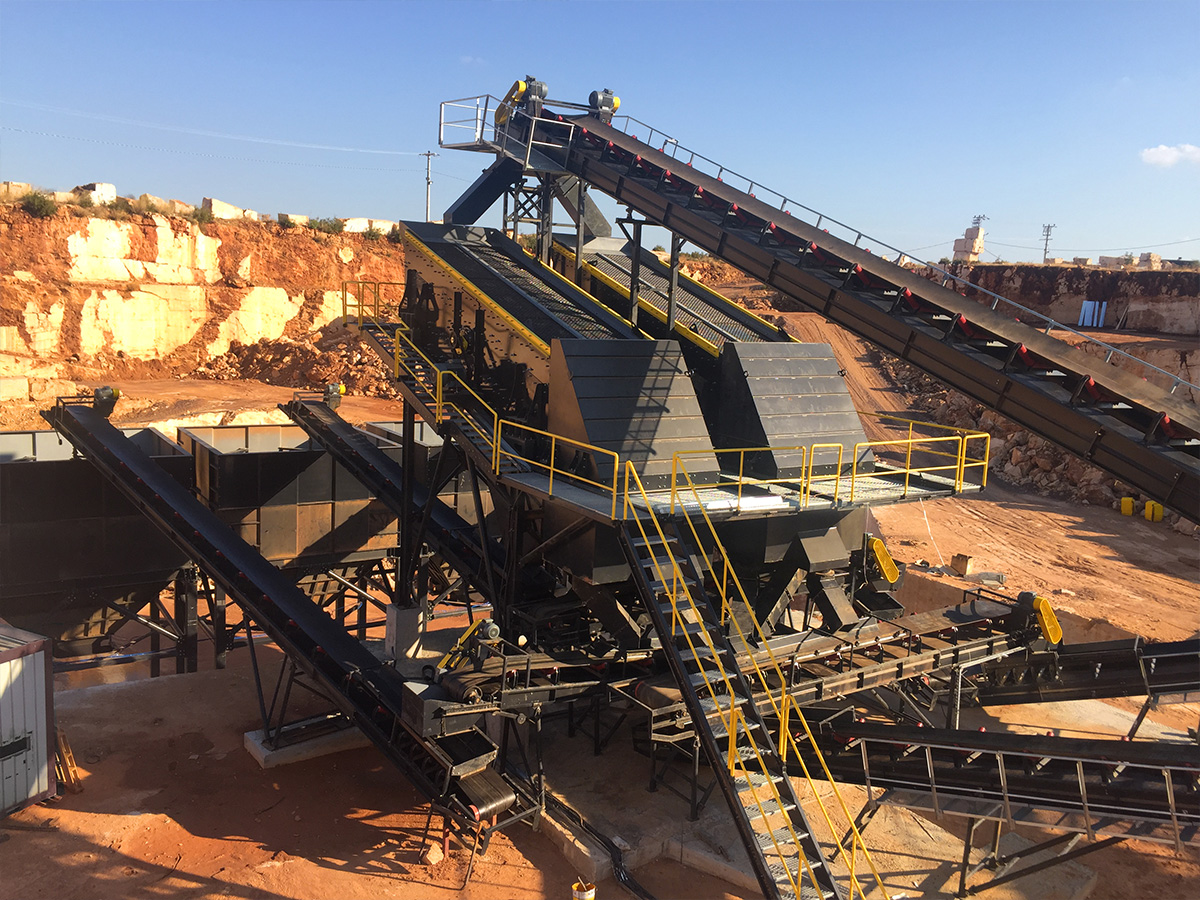

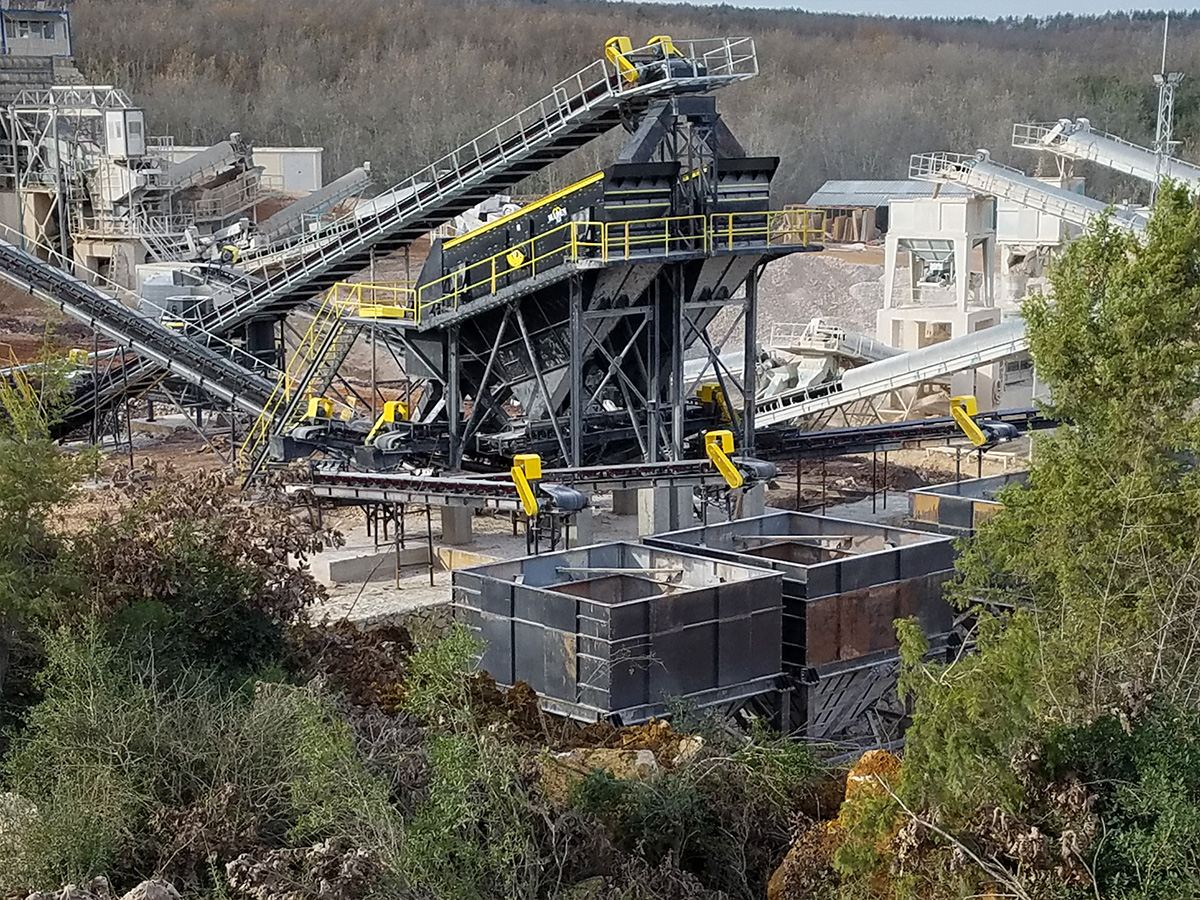

PRODUCT GALLERY
