JAW CRUSHERS

Jaw crushers are used as the most important option in primary crushing stage especially for medium hard and hard rocks. There are also secondary type jaw crushers designed for secondary crushing of hard materials.

  • The  eccentric shaft for jaw crusher is made of special alloy steel (Mn. Cr. Ni. Mo. )
  • Hydraulic setting adjustment system
  • Heat treatment after welding
  • Jaw plates made of wear resistant casting
  • Automatic lubrication system
  • Heavy-duty cast steel housings
  • Heavy-duty bearings

TECHNICAL SPECIFICATIONS

MODEL TYPE FEED OPENING (mm) JAW ADJUSTMENT RANGE (mm) MOTOR POWER (kW) WEIGHT (Kg)
CK-75 PRIMARY 750×550 25×125 55 9.500
CK-90 PRIMARY 900×650 50-150 75 14.500
CK-110 PRIMARY 1100×850 75-175 132 33.800

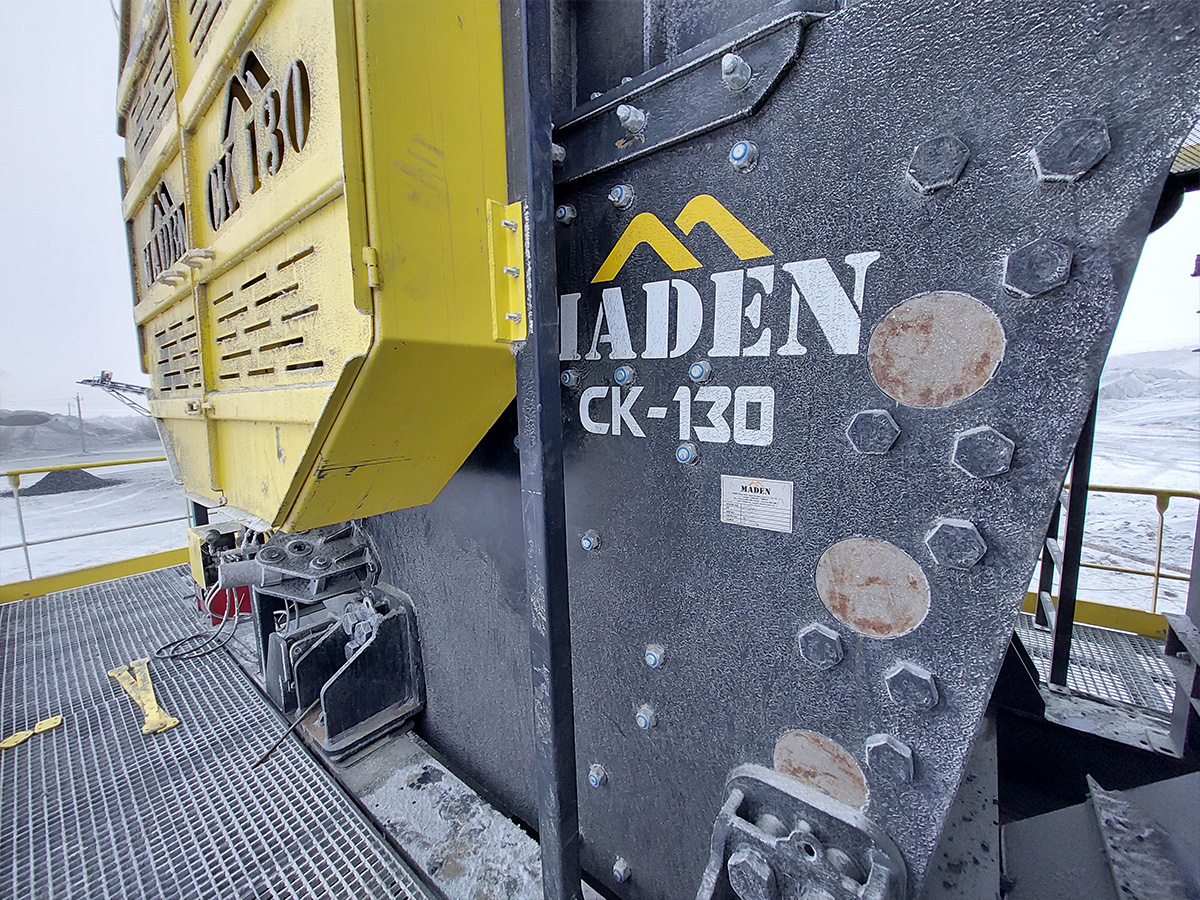

CK-130 PRIMARY 1300×1000 100-250 160 44.500

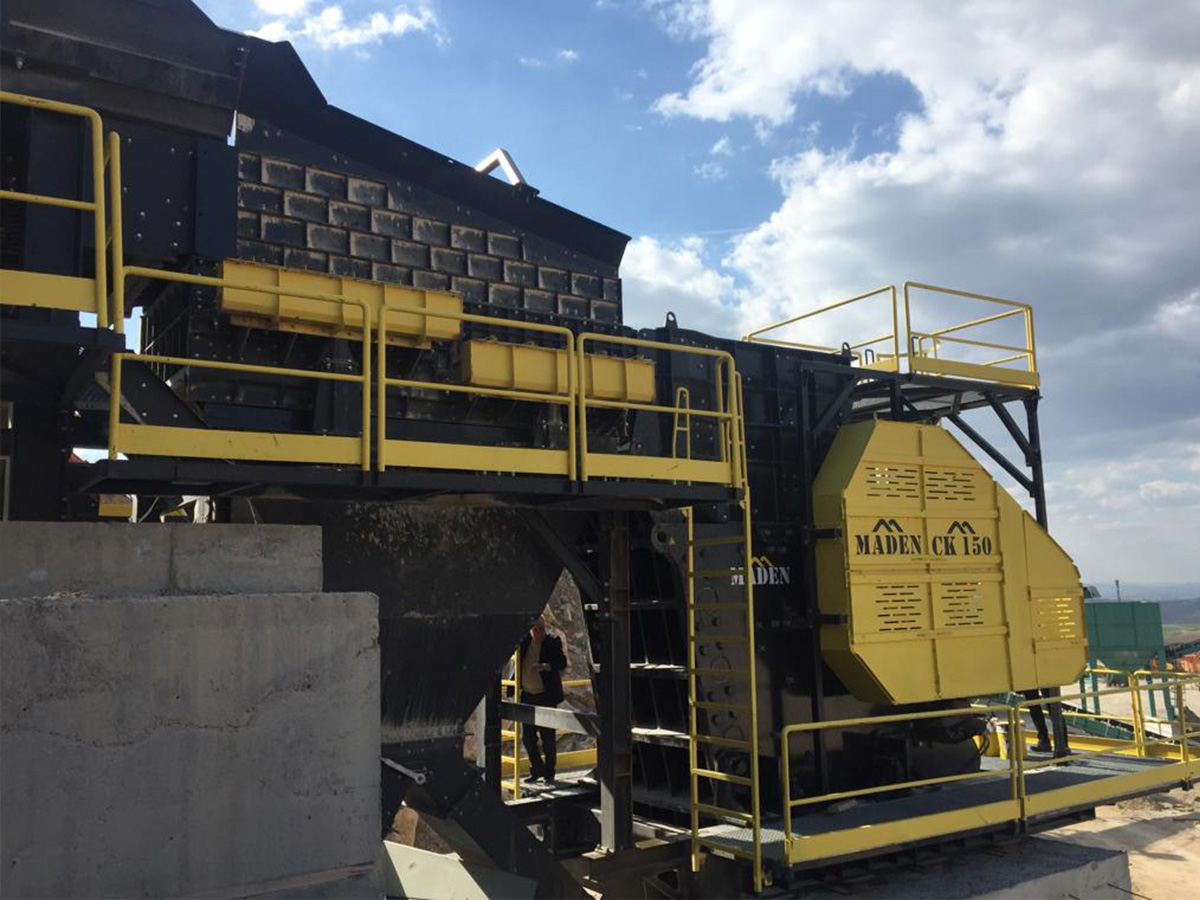

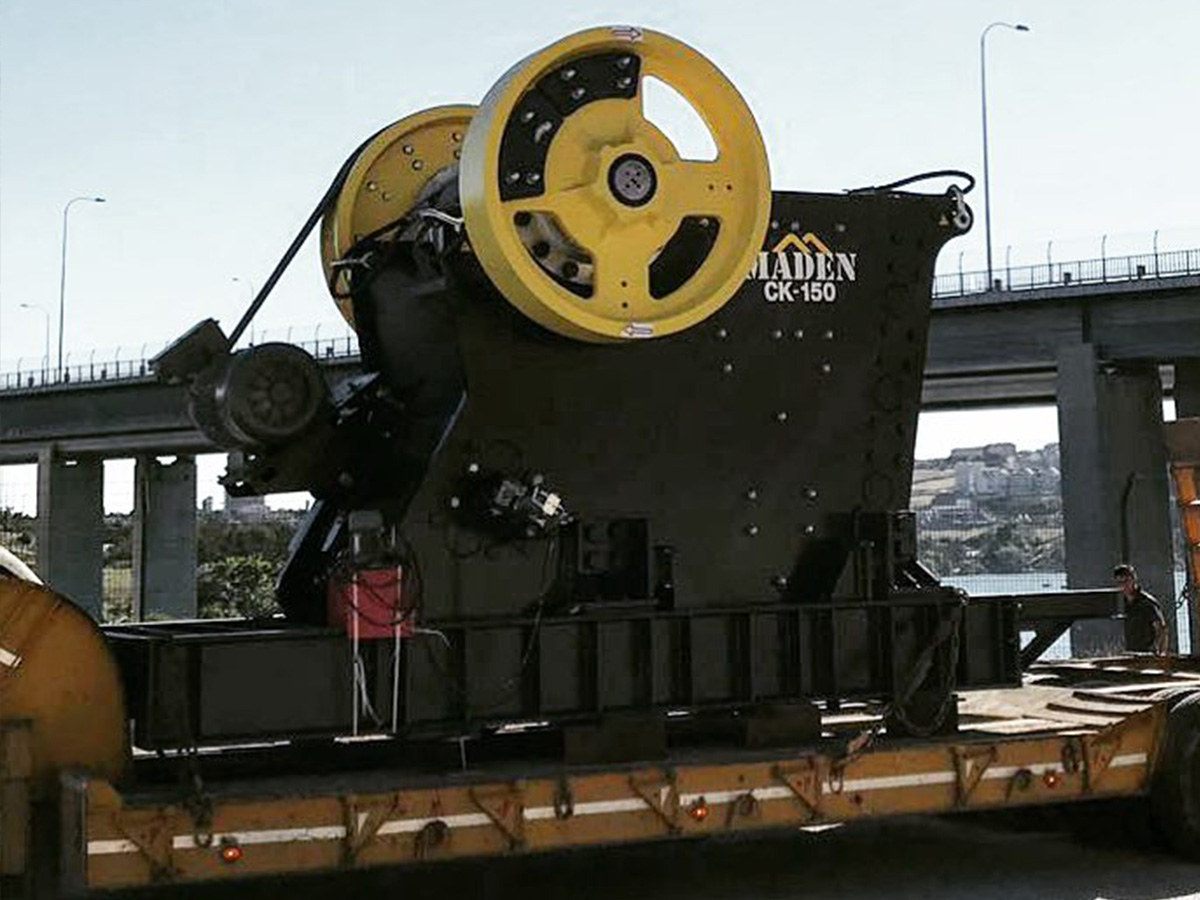

CK-150 PRIMARY 1500×1150 125-300 185 58.000
CK-175 PRIMARY 1750×1300 150×350 200 65.000
CK-200 PRIMARY 2000×1450 175×400 250 71.800
CKS-90 SECONDARY 900×200 25-75 30 5.100
CKS-110 SECONDARY 1100×350 25-100 55 10.800

DIMENSIONS

MODEL A B C D E F G H I
CK-75 1930 2660 2035 1860 740 220 1375 1010 1485
CK-90 2250 2155 1330 2065 900 650 1330 1210 1360
CK-110 3115 3350 2030 2480 1100 850 2240 1600 1940
CK-130 3500 3865 2725 2770 1300 1000 2685 1800 2520
CK-150 3845 4065 3100 3000 1500 1150 3030 1800 2720
CK-175 4100 4265 3350 3260 1700 1260 3440 2000 2920
CK-200 4500 4465 3640 3570 1900 1345 3790 2000 3150
CKS-90 1930 2220 1460 2000 1500 200 1250 1210 1065
CKS-110 2700 3050 1160 2480 1100 350 1830 1600 1630
